Pie Chart

Component Palette Icon:

Description

The Pie Chart component displays a familiar-looking pie chart. A Pie Chart displays a list of named items, each of which has a value that is part of a total. The total is the sum of the value of each item. The key to the Pie Chart component is the Data property, which contains the items that will be displayed as pie wedges. Typically, this dataset will be bound to a SQL Query Binding to pull dynamic data out of an external database.

Extract Order

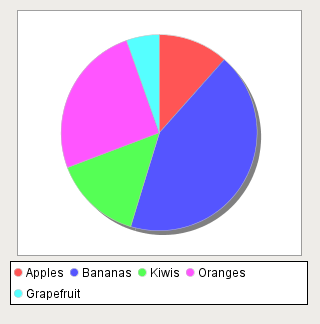

Similar to other charts, the pie chart can actually accept data in two formats. You can tell the pie chart which format to use via its Extract Order property. The two extract orders are By Column or By Row . The following tables show the two styles for the data that created the pie chart in the screenshot.

By Column

Label	Value
Grapefruit	7
Apples	15
Bananas	56
Kiwis	19

By Row

Grapefruit	Apples	Bananas	Kiwis
7	15	56	19

Labels

In addition to the color-coded legend, the pie chart can annotate each wedge with a label. The format of the label is controlled via the Label Format property.

For example, the format string used in the screenshot is " {0} = {2} ({3}) " This is a pattern string that uses the following placeholders:

• {0} - the item label
• {1} - the item value
• {2} - the item percentage

Properties

New in 7.9.8

The 3D? Property on the the Pie Chart has been removed as of 7.9.8. Instead, the Style property should be use to configure a 3D Pie Chart. The depreciated property is listed further down this page.

Name	Description	Property Type	Scripting	Category
3D Depth Factor	The depth of a 3D pie as a factor of the chart height.	double	.depthFactor	Appearance
Antialias	Draw with antialias on? Makes text smoother.	boolean	.antialias	Appearance
Border	The border surrounding this component. NOTE that the border is unaffected by rotation.	Border	.border	Common
Chart Title	An optional title that will appear at the top of the chart.	String	.title	Appearance
Cursor	The mouse cursor to use when hovering over this component.	int	.cursorCode	Common
Data	The data driving the chart.	Dataset	.data	Data
Data Quality	The data quality code for any tag bindings on this component.	int	.dataQuality	Data
Enforce Circularity?	If true, the pie cannot be an oval, even if the overall chart is.	boolean	.circular	Appearance
Extract Order	Controls whether or not a pie plot views columns as pies, or rows.	int	.extractOrder	Data
Foreground Transparency	The transparency of the pie (useful for 3D pies).	double	.foregroundAlpha	Appearance
Label Font	The font for labels items, if there are labels.	Font	.labelFont	Appearance
Label Format	Formatting String. '{0}' is the wedge name, '{1}' is the value, '{2}' is the percent.	String	.labelFormat	Appearance
Labels?	Should labels be displayed near sections?	boolean	.labels	Appearance
Legend Font	The font for legend items, if there is a legend.	Font	.legendFont	Appearance
Legend?	Should there be an item legend below the chart?	boolean	.legend	Appearance
Mouseover Text	The text that is displayed in the tooltip which pops up on mouseover of this component.	String	.toolTipText	Common
Name	The name of this component.	String	.name	Common
Outline Colors	The colors to use for the pie wedge outlines.	Color[]	.outlineColors	Appearance
Outline Stroke	The width for the section outline stroke.	float	.outlineStroke	Appearance
Plot Background	The background color for all plots, unless they override it.	Color	.plotBackground	Appearance
Rotation	Draw the wedges clockwise or counter-clockwise from the starting angle?	int	.rotation	Appearance
Section Colors	The colors to use for the pie wedge fills.	Color[]	.sectionColors	Appearance
Selected Wedge	The currently selected wedge. (Read only. Usable in bindings and scripting.)	String	.selectedData	Uncategorized
Selection Enabled?	If true, the user will be able to select wedges on the chart. The selected wedge will be highlighted, and the "selectedData" property will reflect it.	boolean	.selectionEnabled	Behavior
Selection Highlight Color	The color of the selection highlight.	Color	.selectionHighlightColor	Appearance
Selection Highlight Width	The line width of the selection highlight.	float	.selectionHighlightWidth	Appearance
Starting Angle	The start angle to draw the pie wedges.	int	.startAngle	Appearance
Style	Style of pie chart, standard, 3D, or ring.	int	.style	Appearance
Title Font	The font for the chart's title.	Font	.titleFont	Appearance
Tooltip Format	Formatting String. '{0}' is the wedge name, '{1}' is the value, '{2}' is the percent.	String	.tooltipFormat	Appearance
Tooltips?	Should tooltips be displayed when the mouse hovers over sections?	boolean	.tooltips	Behavior
Visible	If disabled, the component will be hidden.	boolean	.visible	Common

Deprecated Properties

The property below is deprecated, and should not be used.

Name	Description	Property Type	Scripting	Category
3D?	Enables 3D rendering. Deprecated. Use Style property instead.	boolean	.threeDimensional	Appearance

Scripting

Scripting Functions

This component does not have scripting functions associated with it.

Extension Functions

This component does not have extension functions associated with it.

Event Handlers

Event handlers allow you to run a script based off specific triggers. See the full list of available event handlers on the Component Events page

Customizers

• Vision Component Customizers

Examples

Code Snippet

#The following code will print named and value of the selected wedge to the console.
#Alternatively, this can be used to write to a custom property of a table that is used to create the 'Where' clause of a SQL query that populates a table.

selectedWedge = event.source.selectedData
print selectedWedge
