Equipment Schedule

Component Palette Icon:

Description

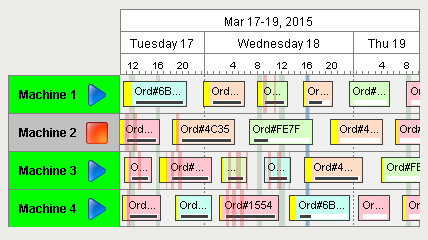

The equipment schedule view is a mix between the status chart, gantt chart, and a calendar view. It conveys a lot of information about equipment, including current status, production schedule, production status, scheduled and unexpected downtime.

The equipment schedule is powered by four datasets. Information is retrieved from the datasets by column name, case-insensitive. The order of the columns is not important. Optional columns may be omitted.

The "Items" Dataset

Describes the "items" or "cells" to display schedules for. Each entry in this dataset will become a row of the chart.

Name	Type	Optional	Description
ID	Any	N	The identifier for this item. May be any type, will referenced by each entry in the Scheduled Events dataset.
Label	String	N	The text to display in the header.
Foreground	Color	Y	Text color
Background	Color	Y	Background color
StatusImagePath	String	Y	A path to an image to display to the right of the header label.

The "Scheduled Items" Dataset

Lists the scheduled events for each item described in the "Items" dataset. Each scheduled event can have a colored lead, or change-over time, a label, a background color, and a progress.

Name	Type	Optional	Description
EventId	String	Y	An identifier for the event, used for event selection.
ItemId	Any	N	The ID of the item to correlate this event with. If no such item is found, the event won't be shown.
Label	String	N	The text to display in the event's box.
StartDate	Date	N	The start-time for the event.
EndDate	Date	N	The end-time for the event.
Foreground	Color	Y	The text color of the event.
Background	Color	Y	The background color of the event.
LeadTime	Integer	Y	Time, in seconds, to display as lead time.
LeadColor	Color	Y	The color for the lead time, if any.
PctDone	Number	Y	A value from 0 to 100 to be displayed as a progress bar, use -1 to hide progress bar.

The "Downtime" Dataset

Entries in this dataset will be displayed as simple colored overlays on top of the events, correlated against an item defined in the "Items" dataset.

Name	Type	Optional	Description
ItemId	Any	N	The ID of the item to correlate this downtime event with. If no such item is found, the downtime event won't be shown.
StartDate	Date	N	The start time for the downtime event.
EndDate	Date	N	The end time for the downtime event.
Color	Color	Y	The color to use, typically transparent.
Layer	Integer	Y	0 or 1, with 0 meaning that the rectangle gets painted below the events, and 1 means it will be painted above the events.

The "Breaks" Dataset

Entries in this dataset will be displayed as colored underlays beneath all events.

Name	Type	Optional	Description
StartDate	Date	N	The start time for the break event.
EndDate	Date	N	The end time for the break event.
Color	Color	Y	The color to use.

Properties

Name	Description	Property Type	Scripting	Category
Antialias	Draw with antialias on? Makes text smoother.	boolean	.antialias	Appearance
Border	The border surrounding this component. NOTE that the border is unaffected by rotation.	Border	.border	Common
Break Events	Scheduled breaks, which will appear as downtime for all items.	Dataset	.breakEvents	Data
Current Time Color	The color of the current time indicator.	Color	.nowColor	Appearance
Downtime Events	Downtime events correlated to a specific item.	Dataset	.downtimeEvents	Data
Drag Enabled	Controls whether or not scheduled events can be dragged for rescheduling.	boolean	.dragEnabled	Behavior
Enabled	If disabled, a component cannot be used.	boolean	.componentEnabled	Common
End Date	The end of the time range to display.	Date	.endDate	Data
Event Border	The normal border for a scheduled event.	Border	.eventBorder	Appearance
Event Font	The font to use for the event labels.	Font	.eventFont	Appearance
Event Margin	The margin to leave visible above and below a scheduled event.	int	.scheduledEventMargin	Appearance
Header Background	The color of the background for the header timeline.	Color	.headerBackground	Appearance
Header Font	The font of the text in the header timeline.	Font	.headerFont	Appearance
Header Item Font	The font to use for the header items' labels.	Font	.itemFont	Appearance
Header Text Color	The color of the text in the header timeline.	Color	.headerTextColor	Appearance
Items	The cells, or equipment items, to have their schedules displayed.	Dataset	.items	Data
Line Color	The color of separating lines in the schedule.	Color	.lineColor	Appearance
Name	The name of this component.	String	.name	Common
Progress Bar Background	The background color for the event progress bars.	Color	.progressBackground	Appearance
Progress Bar Border	The border color for the event progress bars.	Color	.progressBorder	Appearance
Progress Bar Fill	The color for 'done' portion the event progress bars.	Color	.progressFill	Appearance
Resize Enabled	Controls whether or not scheduled events resized for duration changes.	boolean	.resizeEnabled	Behavior
Row Height	The height of each event's schedule row.	int	.lineHeight	Appearance
Schedule Background	The background color of the schedule area.	Color	.scheduleBackground	Appearance
Scheduled Events	The scheduled events for all configured items.	Dataset	.scheduledEvents	Data
Selected Event Border	The border for a selected scheduled event.	Border	.selectedEventBorder	Appearance
Selected Event ID	The ID of the selected event.	String	.selectedEvent	Data
Start Date	The beginning of the time range to display.	Date	.startDate	Data
Visible	If disabled, the component will be hidden.	boolean	.visible	Common

Scripting

See the Equipment Schedule Scripting Functions page for the full list of scripting functions available for this component.

Event Handlers

Event handlers allow you to run a script based off specific triggers. See the full list of available event handlers on the Component Events page

Customizers

• Vision Component Customizers
