Linear Scale

Component Palette Icon

The Linear Scale component has two main purposes. The first is to display a series of tick marks and labels that visually represent a linear range between a minimum value and a maximum value. The second purpose is to display indicators that represent a value or range of values, correctly positioned on the linear scale.

To configure the indicators, use the Linear Scale Customizer which is described below. To configure the tick marks, use the Linear Scale's various properties in the Property Editor that determine the minimum value, maximum value, and the various tick mark spans.

Note that there is no tall/wide option for this component. This is based on the width/height of the component. A tall Linear Scale has tick marks on the left or right, and a wide component has tick marks on the top or bottom.

Properties

Name	Description	Property Type	Scripting	Category
Antialias	Draw with antialias on? Makes text smoother.	boolean	.antialias	Appearance
Border	The border surrounding this component. NOTE that the border is unaffected by rotation.	Border	.border	Common
Cursor	The mouse cursor to use when hovering over this component.	int	.cursorCode	Common
Data Quality	The data quality code for any tag bindings on this component.	int	.dataQuality	Data
Fine Tick Color	The line color for fine ticks.	Color	.fineTickColor	Appearance
Fine Tick Length	The line length for fine ticks, in pixels.	double	.fineTickLength	Appearance
Fine Tick Span	The span length for fine ticks. Should be a factor of the major and minor tick spans. Use zero to disable fine ticks.	double	.fineTickSpan	Data
Fine Tick Thickness	The line thickness for fine ticks, in pixels.	float	.fineTickStroke	Appearance
Indicators	This dataset stores the indicators (if any) for the scale.	Dataset	.indicators	Data
Label Angle	Changes the angle that the labels are drawn.	int	.labelAngle	Appearance
Label Color	The color used for drawing tick labels.	Color	.majorTickLabelColor	Appearance
Label Font	The font used for drawing tick labels.	Font	.majorTickFont	Appearance
Label Format	The label format string. Examples: "%.1f" will render numbers like "15.0", "%.0f" will render numbers like "15". Using the empty string "" will disable the labels.	String	.majorTickLabelFormat	Appearance
Major Tick Color	The line color for major ticks.	Color	.majorTickColor	Appearance
Major Tick Length	The line length for major ticks, in pixels.	double	.majorTickLength	Appearance
Major Tick Span	The span length for major ticks. Should be a multiple of the minor and fine tick spans.	double	.majorTickSpan	Data
Major Tick Thickness	The line thickness for major ticks, in pixels.	float	.majorTickStroke	Appearance
Margin	The margin to leave blank as a percentage of the total height or width of the scale.	double	.margin	Appearance
Max Value	The upper bound of the scale.	double	.maxValue	Data
Min Value	The lower bound of the scale.	double	.minValue	Data
Minor Tick Color	The line color for minor ticks.	Color	.minorTickColor	Appearance
Minor Tick Length	The line length for minor ticks, in pixels.	double	.minorTickLength	Appearance
Minor Tick Span	The span length for minor ticks. Should be a factor of the major tick span and a multiple of the fine tick spans. Use zero to disable minor ticks.	double	.minorTickSpan	Data
Minor Tick Thickness	The line thickness for minor ticks, in pixels.	float	.minorTickStroke	Appearance
Mirror	Mirror the scale so it paints against the opposite edge.	boolean	.mirror	Appearance
Mouseover Text	The text that is displayed in the tooltip which pops up on mouseover of this component.	String	.toolTipText	Common
Name	The name of this component.	String	.name	Common
Reverse Range	Reverse the scale so that values go from high to low instead of low to high.	boolean	.reverseRange	Appearance
Visible	If disabled, the component will be hidden.	boolean	.visible	Common

Scripting

Scripting Functions

This component does not have scripting functions associated with it.

Extension Functions

This component does not have extension functions associated with it.

Event Handlers

Event handlers allow you to run a script based off specific triggers. See the full list of available event handlers on the Component Events page

Customizers

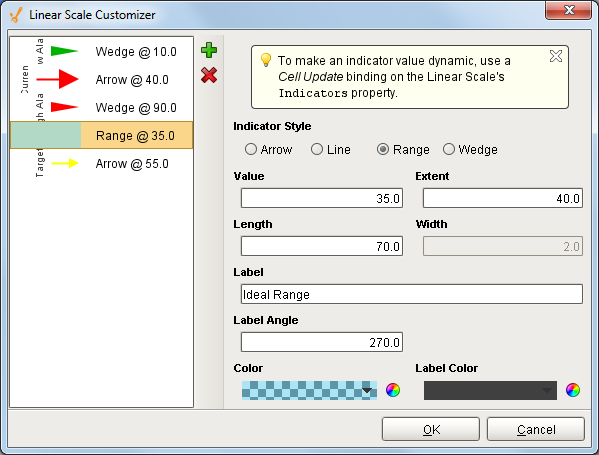

The Linear Scale component has a special customizer called the Linear Scale Customizer. The customizer is where you configure the indicators that visually represent how your data is displayed on the scale. You can choose from several indicator styles: Arrow, Line, Range, and Wedge. There are a number of properties available to customize the appearance of your data on the Linear Scale. Not all Linear Scale Customizer properties are available with all indicator styles. The property will be grayed out if it is not available for that particular indicator. Use the preview window to validate the style you want to use for your data.

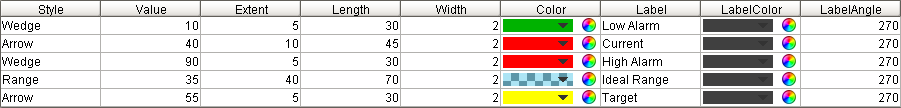

To make your indicator values dynamic, you can use a Cell Update binding on the Indicators property of this component.

Linear Scale Customizer - Property Descriptions

Property	Description
Indicator Style	There are four indicator styles to choose from: Arrow, Line, Range, and Wedge. Arrow: A line with an arrow head at the given value Line: A basic flat line at the given value Range: a rectangle displayed with the given value at the bottom and a height equal to the Extent Wedge: a wedge shape centered on the given value and a height equal to the Extent
Value	The position of the indicator.
Extent	Overall thickness of the indicator. Not valid for a Line style.
Length	The number of pixels to draw the indicator starting at the component edge.
Width	Thickness of the line in the indicator. Only valid for Arrow and Line styles.
Label	Name displayed next to the indicator.
Label Angle	The angle of the label specified in degrees.
Color	Color of the indicator.
Label Color	Color of the indicator Label.

• Vision Component Customizers

Examples

In this example, the Linear Scale displays indicators for high and low levels. A Cell Update Binding was used on an Arrow indicator to make the "Current" level value dynamic.

Vertical Scale with Blue Indicators
