Vision Module
HMI/SCADA Visualization
Get Real-Time & Historical Data on Control Screens
The Vision Module delivers a dynamic, powerful, and beautiful HMI experience unlike any other. Display real-time and historical data on everything from status and control screens to interactive charts and tables so you can analyze data at a glance and quickly act on it. Since all clients are connected to a central server, everyone in your company will stay up to date and can easily access the real-time data they need.
You’ll never be limited by how many Clients (runtimes) or screens you can use because the Ignition Vision Module includes unlimited clients per central server. Every member of your company can have insight into operations at no additional cost.
Real-Time Status & Control

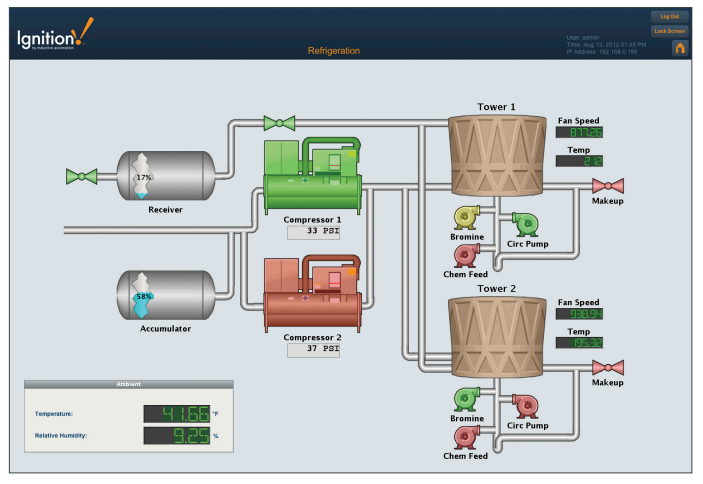

Ignition’s real-time status and control functionality, coupled with advanced analytic capabilities provided by Ignition’s SQL database integration, gives you the power to quickly analyze and easily display the status of your facility.
Alarming
Set up screens to display real-time alarms from the Alarming module so your operations team can respond quickly to resolve the issue, either in the facility or out in the field via the Ignition Mobile Module.
Analyze Real-Time and Historical Data

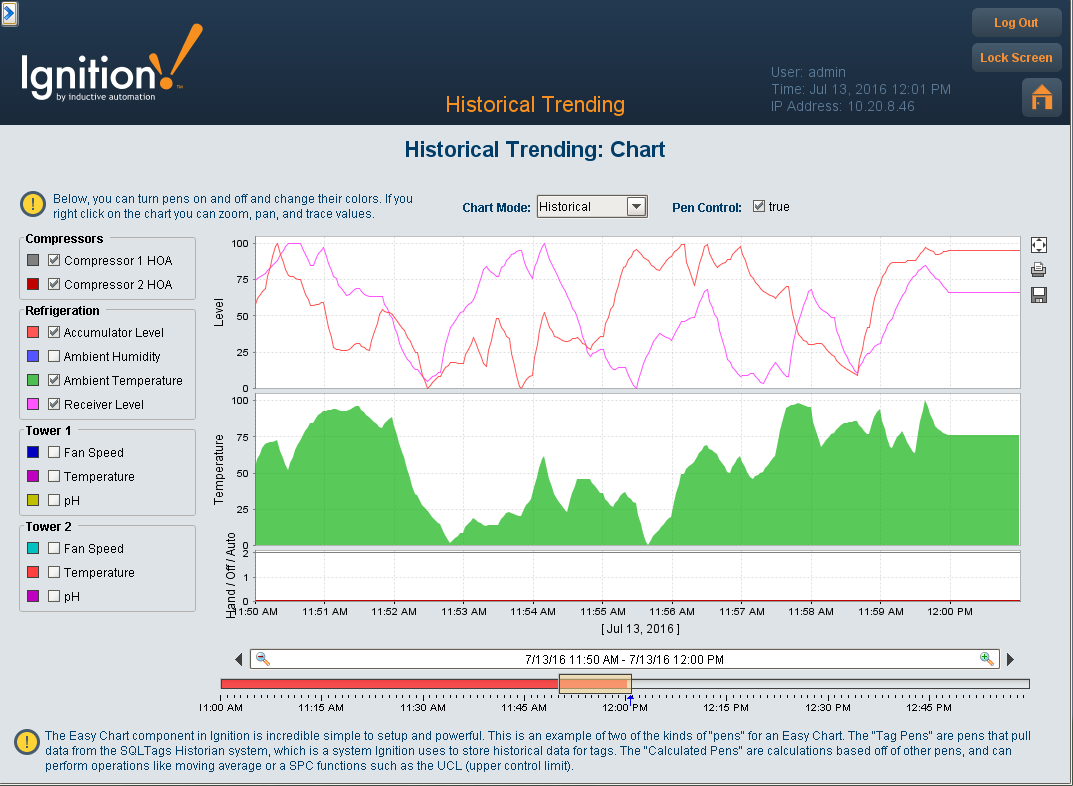

Included customizable charts, tables and graphs display your real-time and historical data, making at a glance analysis easy. You’ll be able to quickly set up executive dashboards, track key performance indicators (KPIs), and view trends.
Database Front-End
Easily integrate data from SQL databases with your SCADA system. Data entered by operators can be written directly to any database. The powerful property binding system makes it easy to display information from databases on any screen.
Designer Included

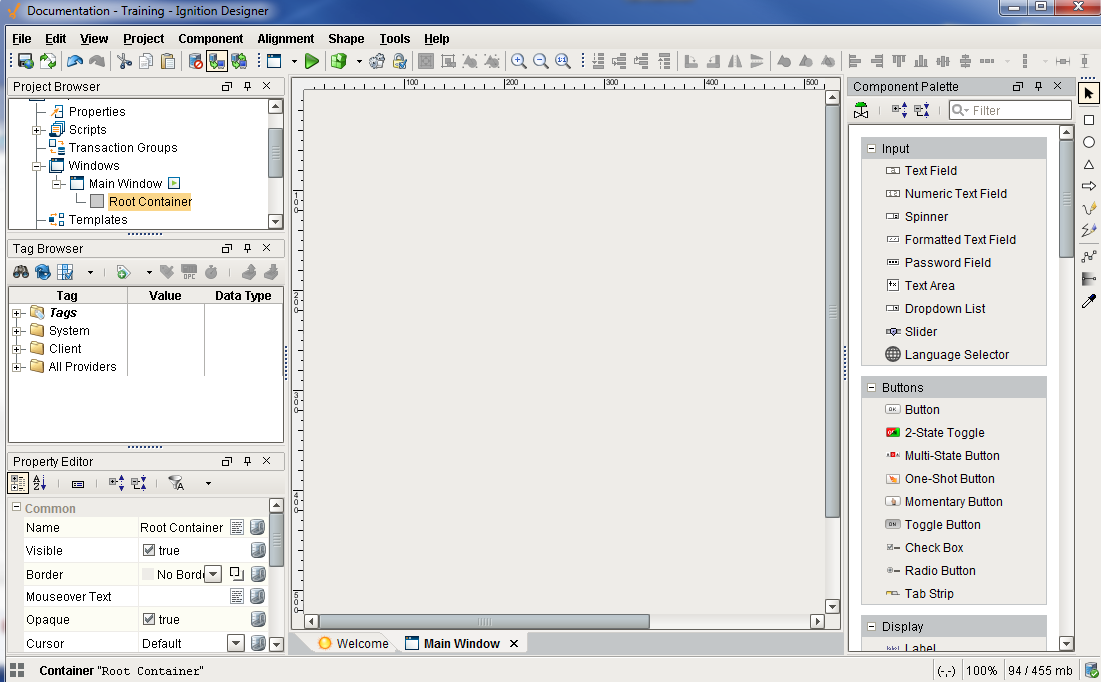

Clients are configured through the included Ignition Designer. Drag-and-drop configuration makes screen development intuitive; simply drag Tags and drop them onto components to instantly bind data to inputs, displays, tables, charts, and more.
Vector-Based 2D Drawing Tools
Create distinctive screen designs and layouts with shape-building tools for lines, polygons, rectangles, arrows, and circles. Vector graphics let you create precision shapes and Bézier curves that look great on any size monitor; shapes scale to any size without losing image quality.
Easily Create Animations
State dependant settings and dynamic positioning lets you bind shape properties to data values so you can easily create animations.
Speed Development With Templates
Develop large projects at record speeds by using component templates. Instances of each template can be placed on as many screens as you want. Any changes made to the template are automatically updated to any instance of that component, saving a huge amount of tedious development time.
Python Scripting
Advanced functionality can be achieved using the built-in Python scripting engine. Python is an extremely popular, powerful, and easy to learn scripting language. Python is highly regarded for its readability, making your projects easy to maintain.
Secured Via SSL
Every client you launch from the Vision Module is secured using SSL protocols. In order to keep your data secure, authentication groups can be used to strictly limit access to certain areas of a project to only the users with appropriate access levels.
Unlimited Clients & Instant Deployment
With the Ignition Vision Module installed on your server, you can launch as many clients as you want, instantly. No individual client install required!
Update All Screens With One Click
With Ignition, managing five clients is just as easy as managing 50. All clients can be updated instantly by making changes to the master project screen on your server, and then clicking the publish button.
View Anywhere, Any Time
View your HMI / SCADA system from anywhere, any time, on any machine. Ignition uses your computer's web browser to launch rich Java applications – not thin web pages – which are fast and cross-platform, making accessibility easy for anyone on your network.
Looking for Less?
Some systems only require a handful of clients at any given time. In cases like these the limited version of Vision is a perfect fit: all the functionality of the full version but at a greatly reduced cost! Contact our sales department for more details.
Want to Learn More?
For more information on the Vision module, please see the Visualization and Dashboards section.
