Tag Browser Symbol Reference

This reference page provides tables showing the symbols used in Tag Browser along with the symbol name and description.

Tag Browser Icons

These icons are found within the Tag Browser.

Icon	Name	Description
	Add	Add button in the Tag Browser allowing actions such as adding a new tag through the OPC Browser, tag folder, Data Type Instance, and standard tags.
	Browse Devices...	Browses the OPC servers to add tags.
	Column Selection	Contains options for enabling or disabling the Value and Data Type columns displayed in the Tag Browser.
	Data Type Instance	Creates new instance of an existing Data Type. Dropdown list shows the available instances.
	Derived Tag	Icon for a Derived tag. Appears next to the tag name in the Tag Browser tree.
	Edit Tag Groups	Opens the Tag Group Editor.
	Export Tags	Exports the tags currently in the Tag Browser.
	Expression Tag	Icon for an Expression tag. Appears next to the tag name in the Tag Browser tree.
	Folder Closed/New Folder	Icon displayed when a folder is closed. Also used when selecting to create a new folder.
	Import Tags	Opens import window from which you can import a tag JSON. You can directly import the tag(s) to your Tag Browser, or use the Interactive tag import to choose which tags to add.
	OPC Tag	Icon for a OPC tag. Appears next to the tag name in the Tag Browser tree.
	Folder Open	Icon displayed when a folder is open.
	Memory Tag	Icon for a Memory tag. Appears next to the tag name in the Tag Browser tree.
	Multi-Instance Wizard	Opens the Multi-Instance Wizard.
	New Standard Tag	Displays a dropdown list from which you can select an option to create a new standard tag, including Derived, Expression, Memory, OPC, Query, and Reference tags.
	Query Tag	Icon for a Query tag. Appears next to the tag name in the Tag Browser tree.
	Reference Tag	Icon for a Reference tag. Appears next to the tag name in the Tag Browser tree.
	Refresh	Refreshes the list of Tag Providers.
	Tag Report Tool	Opens the Tag Report Tool.
	Search	Search for tags.
	Tag Tree Node	Icon for a node in the tag tree.

Tag Browser Context Menu Icons

These icons are found within the Tag Browser's context (right-click) menu.

Icon	Name	Description
	Copy	Copies the selected item to the clipboard.
	Copy JSON	Copies the tag data as JSON.
	Copy Path	Copies the full tag path to the clipboard.
	Create Data Type from Selected	Creates a data type based off the selected tag.
	Cut	Cuts the selected item to the clipboard.
	Delete	Deletes the selected tag.
	EAM	Allows you to send tags to connected Agent Gateways.
	Edit Tag	Opens the Tag Editor screen. This icon is also used for the Edit (raw) option.
	Export Tags	Exports the tags currently in the Tag Browser.
	Import Tags	Opens import window from which you can import a tag JSON. You can directly import the tag(s) to your Tag Browser, or use the Interactive tag import to choose which tags to add.
	Multi-Instance Wizard	Opens the Multi-Instance Wizard.
	New Tag	Displays a dropdown list from which you can select an option to create a new standard tag, including Derived, Expression, Memory, OPC, Query, and Reference tags. Also includes options to create a new folder or new data type instance.
	Paste	Pastes the contents of the clipboard into the current context.
	Rename	Enables text editing of the tag name.
N/A	Restart Tag	Restarts the selected tag.
	View Tag Diagnostics	Opens the Tag Diagnostics window for the selected tag.
N/A	View UDT Hierarchy	Opens the UDT Hierarchy Tool.

Tag Traits

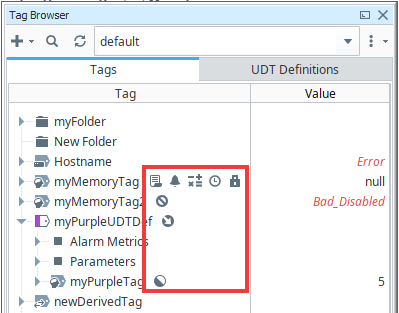

Tag configurations or settings are visually represented by a unique icon next to the tag in the Tag Browser.

The following icons enable you to note some important settings on the tag at a glance. A description of the icons are listed below.

Icon	Name	Description
	Alarming	At least one alarm has been configured for this Tag.
	Disabled	Indicates that the tag is currently disabled.
	Inheritence	Indicates that this tag has inherited properties or values.
	Override	Indicates that the tag's inherited properties have been manually overridden.
	Scaling	Indicates that the tag's Scale Mode property under the Numeric Tag Properties section of the Tag Editor has been set to a value other than Off. The value on the tag will be scaled to some degree.
	Tag Event Script	At least one Tag Event Script has been enabled on this tag.
	Tag History	This tag has been configured to log data into the Tag Historian system.
	Tag Permissions	The Access Rights property under the Security Tag Properties section of the Tag Editor has been set to Read only or Custom. For more information, see Tag Security Properties.

UDT Icons

The following table represents various symbols that UDT definitions can utilize.

Icon	Name	Description
	Alarming	At least one alarm has been configured for this UDT.
	Color	The color assigned to the UDT, which will show up on the bottom left corner of the UDT icon. This property is purely cosmetic, though it can help certain UDTs stand out.
	Disabled	Indicates that a tag(s) is currently disabled.
	History	Indicates that a tag(s) has been configured to log data into the Tag Historian system.
	Inheritance	The UDT or tag has inherited at least one property.
	Override	Indicates that some or all inherited settings have been manually overridden.
	Scaling	Indicates that the tag's Scale Mode property under the Numeric Tag Properties section of the Tag Editor has been set to a value other than Off. The value on the tag will be scaled to some degree.
	Scripting	At least one Tag Event Script has been enabled on this UDT.
	Security	The Access Rights property under the Security Tag Properties section of the Tag Editor has been set to Read Only or Custom. For more information, see Tag Security Properties.
